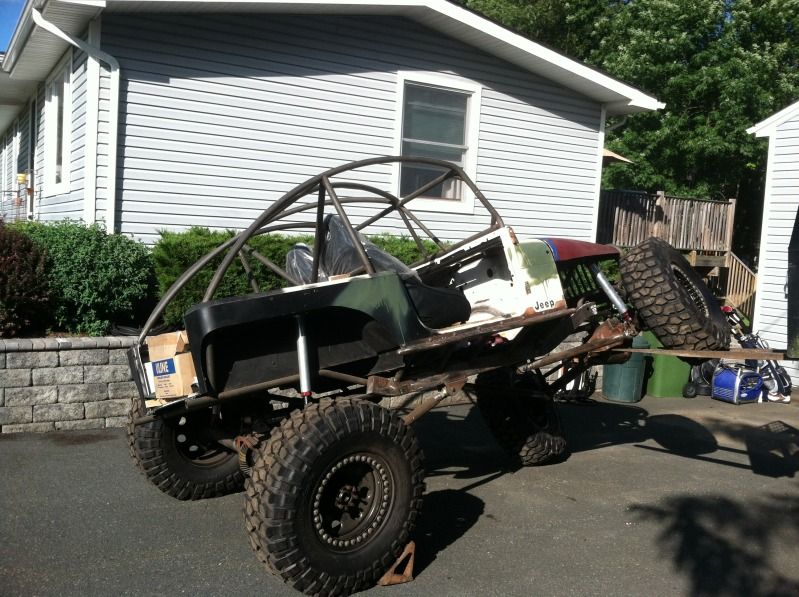

    So I've been working on my buddy Jeremy's CJ rock crawler project for the last year or so and figured I should probably post up a build thread. Specs are listed below. We are hoping to have the maiden voyage at the Catskills Jeep Jambo this September.

    YJ frame chopped in front of the motor mounts and behind the rear links
    AMC 360
    TF999
    5.0 Atlas
    1350 Shafts
    Full Float Dana 60 rear (35 spline, spool)
    Dodge Dana 60 front (35 spine inner and outers, spool, high steer, double ended ram)
    37 inch red label Krawlers
    14 inch air shocks front and rear
    1.5 Chromoly cage
    Boatsided and dove tailed


    The cage is mostly done. Rolled tube .120 wall chromoly with some .095 wall dom for interior peices.

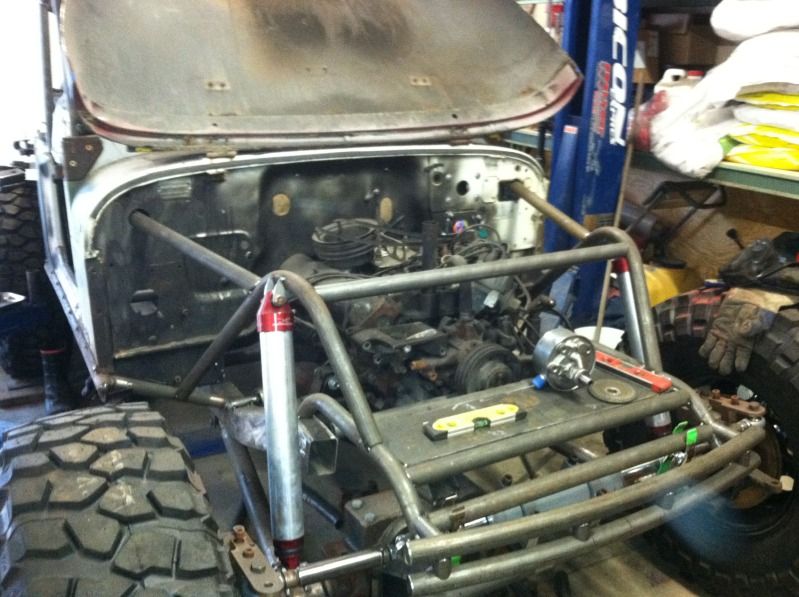

    Built out the front frame and mounted the air shocks

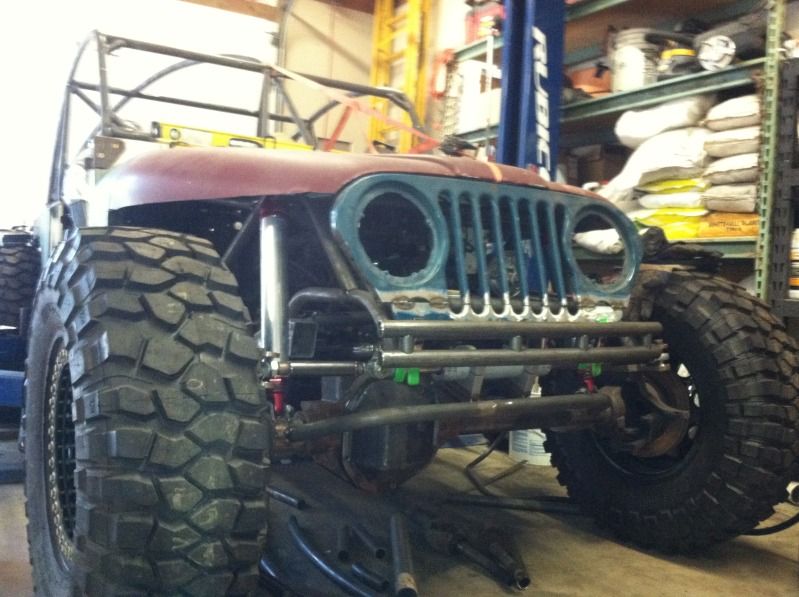

    Narrowed the grill and fabbed the front bumper

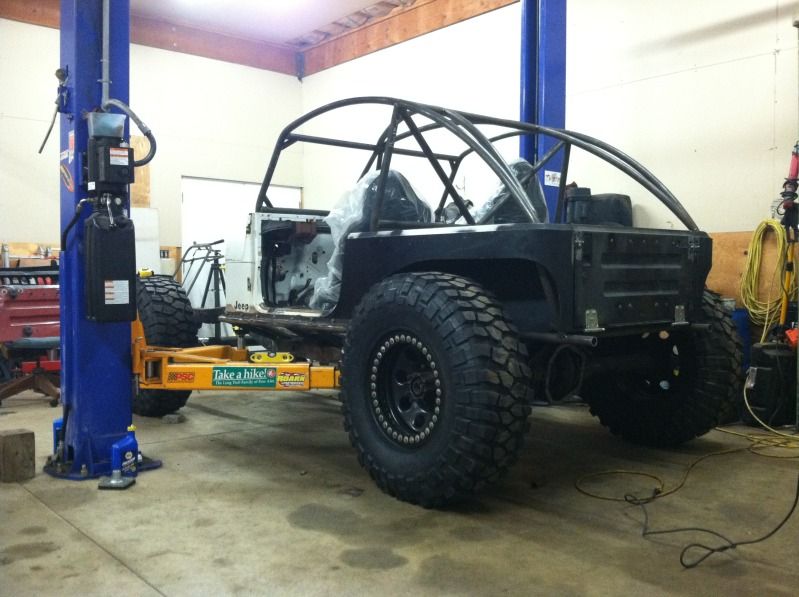

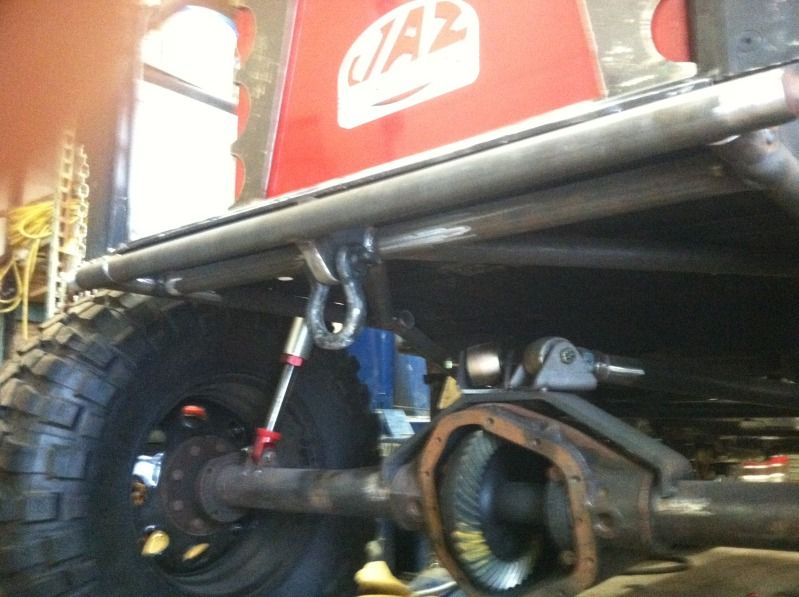

    Fabbed the rear bumper and machined a clevis block out of 1 inch plate

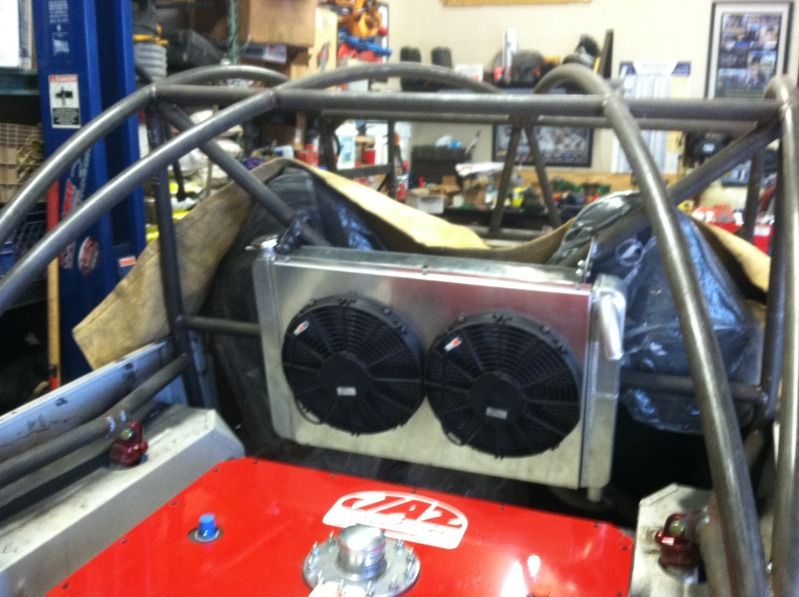

    Mounted the radiator and starting to mock up the fuel cell

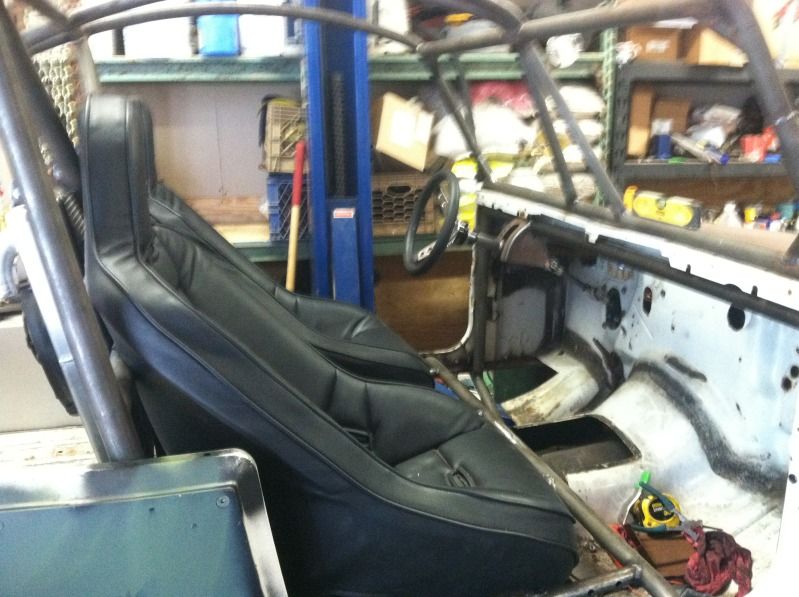

    Orbital and adjustable column mounted



    Double ended ram, track bar and grill hoop with the winch mounted behind the grill (fairlead intergrated into the bumper)

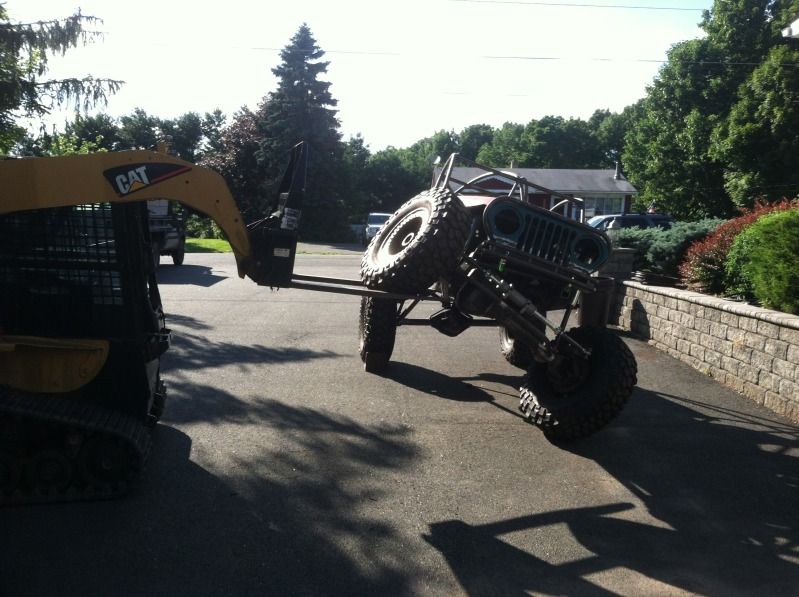

    Gratuitous flex shots for suspension cycling
